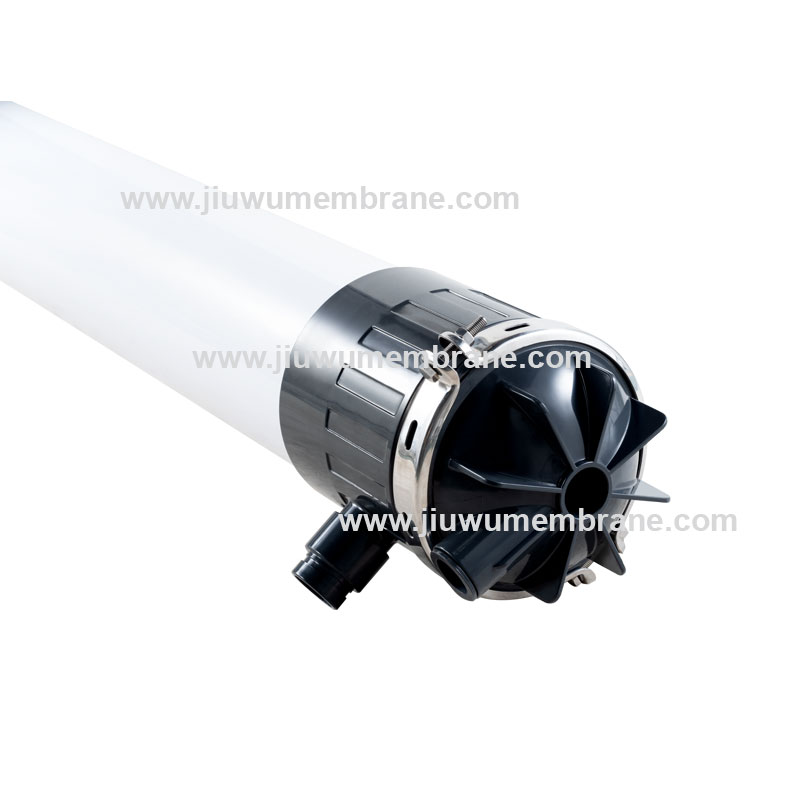

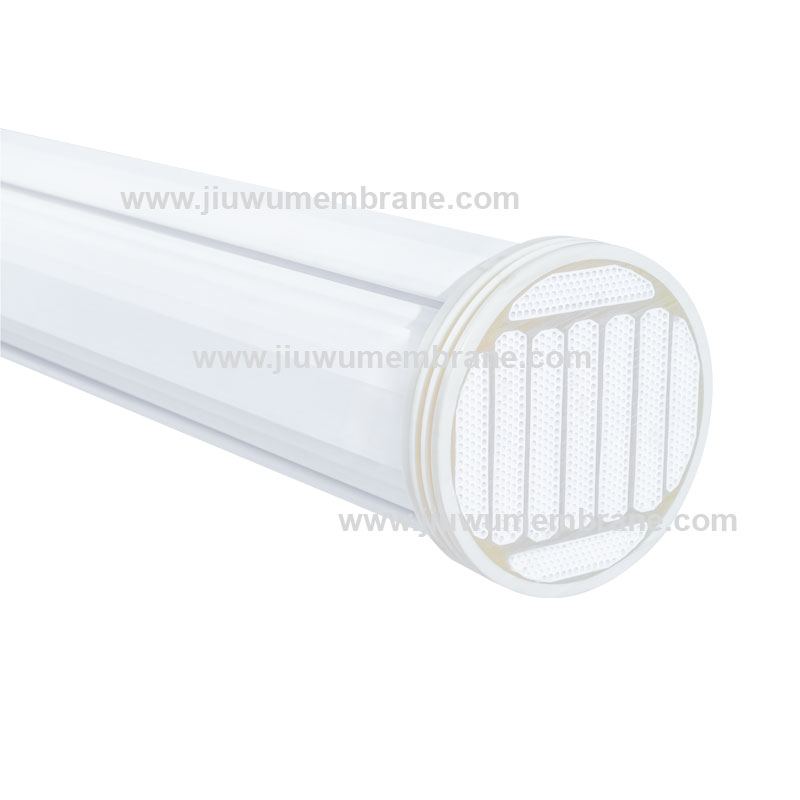

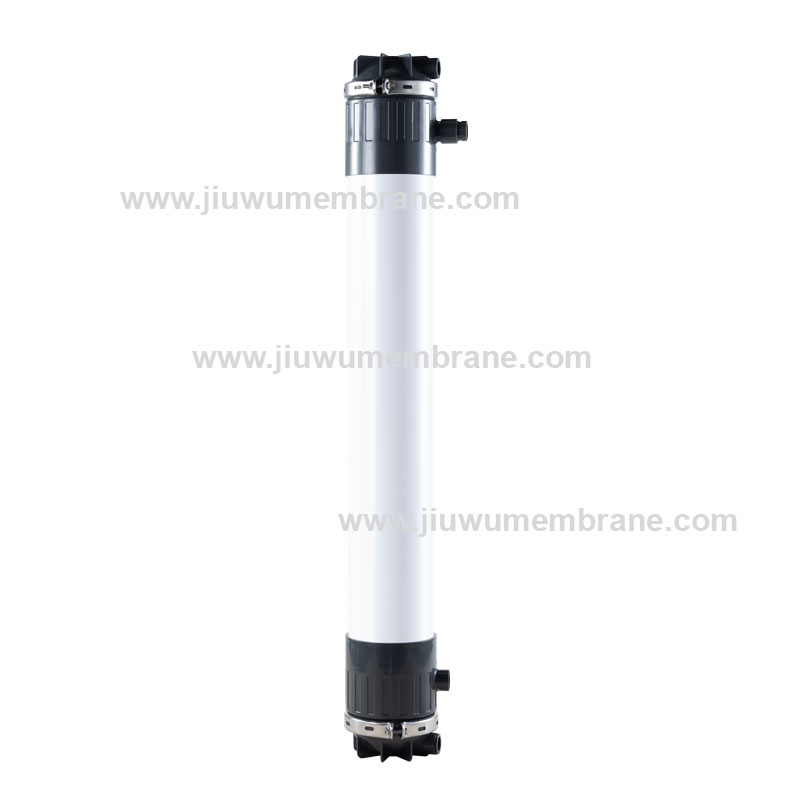

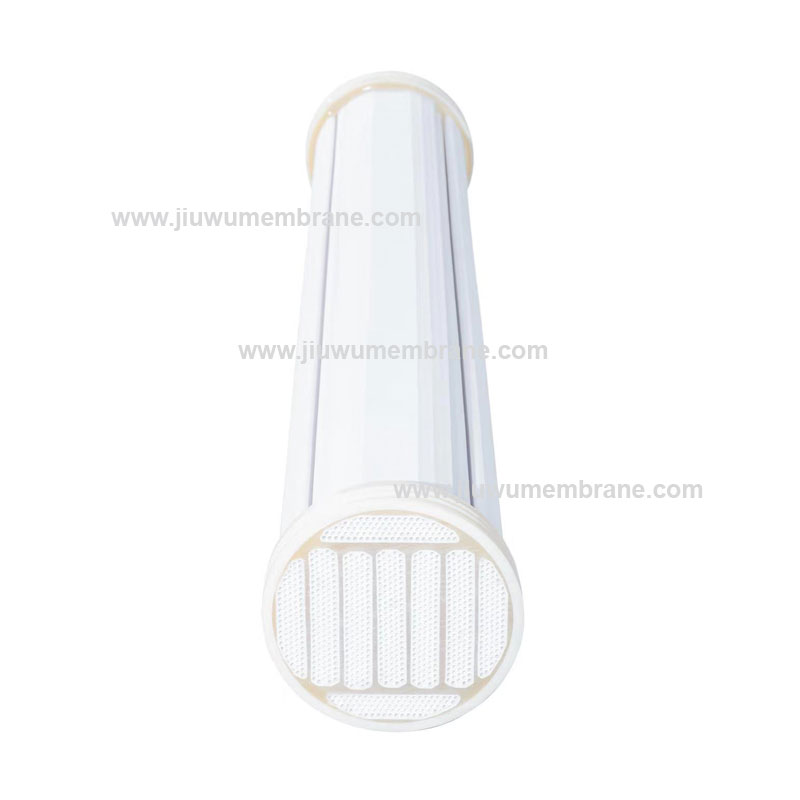

Introduction of High-packed Column Ceramic Membrane

Jiuwu high-packed columnar ceramic membrane is an inorganic ultrafiltration membrane for water treatment developed on the basis of Jiuwu's traditional tubular ceramic membrane and flat ceramic membrane. The high-packed columnar ceramic membrane is made of high-strength a-Al2O3 and fired at high temperature. It has good high temperature resistance, chemical corrosion resistance, and excellent mechanical strength. Compared with the traditional multi-channel tubular ceramic membrane, the filtration area of a single membrane tube with a high-packed column ceramic membrane can reach 10-25 square meters, with greater packing density and processing capacity, which can effectively remove suspended solids, bacteria and colloids, etc. It can be used in many fields such as civil safe water, municipal water supply and wastewater treatment, emergency water supply, water reuse, industrial process wastewater, etc.

The support body is made of inorganic ceramic material, which is durable and has a long service life
The single-membrane column has large area, high packing density, high flux and high water production
Better chemical resistance, wide range of chemical cleaning conditions
The channel of membrane element is 2~4nm, with stronger SS tolerance and stronger backwash effect
Adopting a proprietary flow channel design, the water in and out of the water channel is well distributed, and the operating efficiency is improved
High mechanical strength, high pressure filtration and backwashing
Influent water quality requirements are low, resistance to influent water quality fluctuations
The pore size distribution of the membrane layer is narrow, and it is a multi-layer structure, which is more anti-pollution and easy to clean

Membrane model		HCCM-12-50	HCCM-15-50	HCCM-20-50	HCCM-23-50	HCCM-25-50
product specification	membrane area(m2 )	12	15	20	23	25
	membrane size(mm)	Φ205*1650	Φ205*1750	Φ250*1750	Φ250*1850	Φ250*1950
	In and out interface size	DN40, DN65
	membrane flux(m3/h)	1-3	1.2-3.8	1.6-5	1.8-5.8	2-6.3
	pore size (mm)	10-100
	channel diameter(mm)	2-4
product description	membrane material	a-Al2O3、 ZrO2
	sealing form and material	Sealing ring or rubber fling, fluororubber, EPDM, perfluoroether rubber or epoxy resin, etc
	membrane module material	UPVC SS GFRP
	filter form	internal pressure type, dead end filtration, micro cross-flow filtration
	preservation	dry preservation
applicable conditions	PH	2-12 when running, 1-13 when chemical cleaning
	temperature(℃)	5-45
	Inlet or backwash pressure(Mpa)	less than or equal to 0.5
	maximum transmembrane pressure difference(Mpa)	0.2
	inflow conditions	inlet water shall not contain hydrofluoric acid
	cleaning method	BW CEB CIP

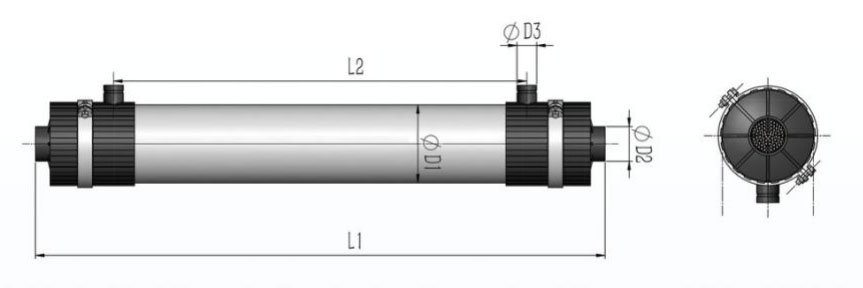

Typical membrane module parameters

Specification of membrane module	L1(mm)	L2(mm)	D1(mm)	D2(mm)	D3(mm)
HCCM-12-50	1650	1200	205	85	59.5
HCCM-15-50	1850	1275	205	95	59.5
HCCM-25-50	1950	1275	250	105	59.5

High-packed column ceramic membrane system

Basic function
System fltration, system circulation, system rinsing, online backwashing, multi-mode cleaning (BW/CEB/CIP), interlocking automatic control, etc

Features
1. The system is simple, the material is controllable, and the overall system cost is low
2. The system is easy to install, flexible to operate, automatic control, and saves labor costs
3. High filtration accuracy, no broken wire, stable water quality, meeting process requirements
4. Standardized modular design, simple process design and easy implementation
5. Filtration form is dead end filtration or micro cross flow filtration, low energy consumption
6. Small footprint, save land, reduce land cost

Applications
Municipal sewage treatment, industrial wastewater treatment, water supply treatment, RO/NF pretreatment
